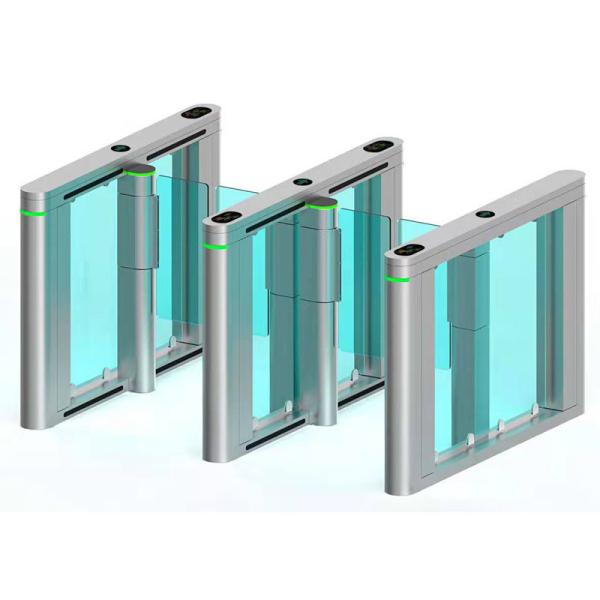

316 Stainless Steel Servo Motor Pedestrian Fastlane
Introduction:
Servo Motor Pedestrian Fastlane is a stainless steel swing turnstile with innovate design, high
quality and fast controlling for entry and exit. It can be
controlled by RFID, barcode, fingerprint or facial verification
device. The data transfers by TCP/IP or RS-485. It's good for
management of people's entry and exit in school, office, gym,
residential, supermarket etc.
OPERATING MODES:
l Single passage in the set direction
l Bi-directional single passage
l Free passage in the direction
l Always free or locked
MATERIALS:
l Housing:Made in stainless AISI 316
l Barrier swings-Acrylic,PC,stainless steel frame
FEATURES:
1.The electric control adopts Servo motor to drive stable and
reliable, and has low failure rate. Ultra high light traffic
indicator function: directional instructions are designed with
ultra bright LED lights, indicating more prominently;
2.In the case of the person who has not swiped the card into the
passageway, the equipment alarm will prompt the traveler to swipe
the card.
3.The function of the reverse alarm system: when a pedestrian
swipes the card, the device alarms the alarm.
4.Check the following function: when the first person swipes the
card, the second person doesn't swipe the card and the device will
alarm.
5.The bicycle delay function: prevent the gate from hitting the
bicycle;
6.Various control functions: by set the setting, the brake machine
can be set at special time to the regular open mode, which
satisfies a large number of people.
7.The mode of choice: to meet the different requirements, it can be
set up as a two-way credit card or a one-way credit card and free
pass.
8.Various control functions: external button, remote control, bar
code, IC or ID, etc.
9.Remote control function: the RS485 can be connected to RS485 by
computer and the RS485 remote control brake machine.
10.Automatic reset function: after the credit card has not passed
in the specified time, the lock will return the lock to cancel the
pass, time 1-60 seconds.
| Model | Swing Barrier Turnstiles |
| Brand | KOMAI / OEM |
| Size/Stick length | 1400*130*1000MM |
| Arm length | 300mm (norm) |
| Material | SUS 316 thickness(1.5mm) |
| Input Voltage | AC110-220±10%,50HZ60HZ |
| Moter's power | 24V |
| Failure-free operation | 5 million/time |
| Weight | 75kg |
| Traffic speed | 35 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Operating humidity | ≤90% |
| Operating temperature | -15℃-60℃ |
| FWD DS | |
| Working environment | indoor and outdoor |
Functions:
1. Self-test and alarm function,user-friendly maintenance and use
;With automatic reset function,gate opening after a specified
period of time. If user does not pass,the system will automatically
cancel the user's current access permission; Auto-reset delay, the
standard automatic reset is after 10 seconds.
2. Through the main control on the half-built small-press
plate,Programmable devices show running status.
3. When valid card is read and passenger passed,arm can be delayed
to close from 1-10s which can be set on the control panel.
4. One-directional,bi-directional function.
5. Auto-reposition function:After card is read,if passenger does
not pass within regulated time period,swing gate will cancel this
passing permission,The regulated time period for passing can be set
by management.
6. If passenger passes without card being read or valid card
read,Swing barrier will alarm until passenger gets back from the
swing barrier and then uses a valid card to be read for passing.
7. Erosion control features,in the absence of gate opening signal
receipt,the arm will automatically be locked.
8. Anti-rush function:if there is no open signal arm will hold
tightly.
9. Adjustable arm swing synchronized (for the double pendulum
case).
10. Adjustable normally open or closed, in order to meet the
requirements of the different venues.
11. Connecting with a variety of reading devices which can be
linked to the receiving signal relay switch.
12. Swing gate is with RS485 interface for long-distance control
concern and the integration of various readers and writers.
Managing computer directly through the remote control and
management .
13. Auto power-off flap opening,power-on self-closing,Meets fire
safety requirements.
14. Double anti-clipping function: photocell anti-clipping and
mechanical anti-clipping.When passenger is going through the swing
barrier,photocell will detect this situation and will not close.
After passenger has passed,arm will close automatically. During its
reposition,if arm meets any obstacle,arm will get back
automatically or stop working for a while with very slight force.
Also it will alarm.
15. Direction display to guide passenger which direction to go.
16. Card-reading with memory or without memory function.
17. Swing barrier can control the population inside in the control
of software.
18. Stable running with little noise.
FAQ:
1.What's the MOQ?
The MOQ of the tripod turnstile is 1pc/pair
2.Whether the size and shape of turnstile can be changed?
Yes, we can redesign the size and shape of the turnstile
to meet your requirement.
3.Is the parts of turnstile available?
If you order our turnstile, the parts can be offered.
4.About the OEM and ODM
Our turnstile can be label your logo to meet your requirement.
5.About the warranty and after-sales services
We provide one year warranty and all life after-sale service,
if require, we can dispatch our engineer to the spot to
help you
6.About the package
For turnstile, carton package first, then wooden case package
to make sure if won't be damaged in the process of transportation.
7.About the installation
We provide the manual to help you to install our turnstile,
as for the software, we provide team viewer to install the
software. Any help will be provided to meet your needs.
8.About the delivery time
5-7 days after payment received
9.About the term of delivery
Support EXW, FOB,etc.
