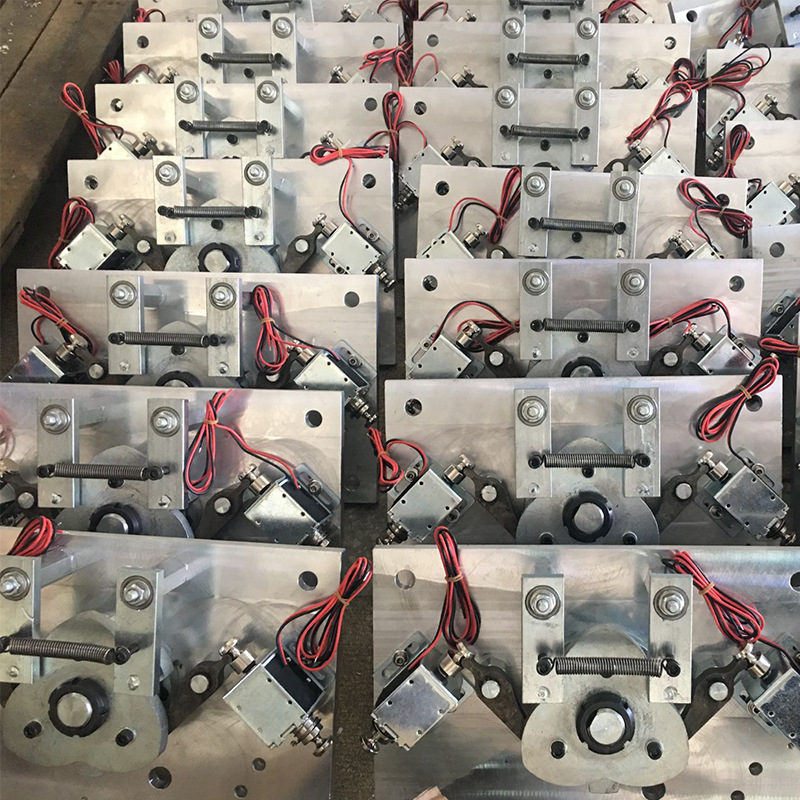

3 Arms Access Control Gate Tripod Core Turnstile Motor Mechanism
Introduction:
Tripod turnstile series are intelligent passage management
equipment researched, developed and produced by our company.The
equipment is integrated with delicate mechanical transmission,
microprocessor control, and various read/write techniques. It can
be used for intelligent control and management of the passage after
equipped with different read/write devices.
The outline of the product is formed after bending the stainless
steel plate. The shape is featured as pleasing appearance, good
looking, stainless and durable. The system is provided with a
standard electric interface and is easily integrated into the
equipment with read/write facilities such as magnetic card, bar
code card, ID card and IC card. As a result, an orderly and
civilized passage is provided for the personnel in and out, and
illegal personnel can be barred. At the same time, a special fire
control interface is equipped in the system to meet the requirement
of fire control passage, so that a rapid down rod control may be
realized in emergency for diverting passengers.
Features
1) RELIABILITY

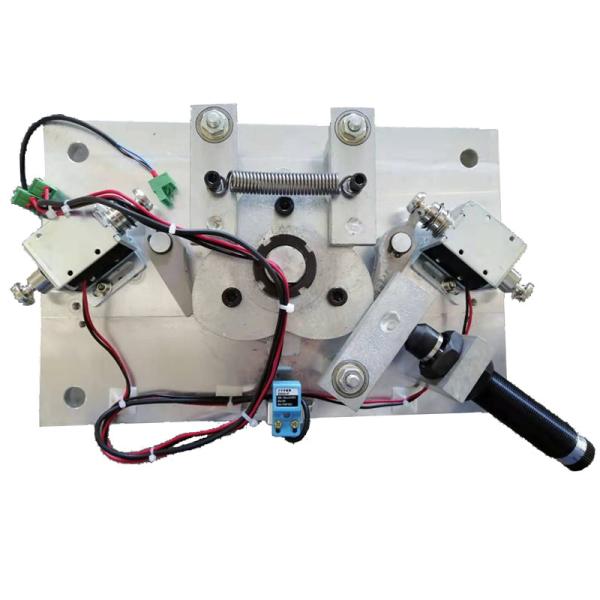

Alloy steel tripod hub prevents mechanical wear. Patented compact
mechanism ensures the long life of the lubricating oil inside and
high quality electrical components.
2) SEMI-AUTO ROTATION
It is unique mechanical drive design allow the arm to be pushed
effortlessly and auto-rotate back without any expensive electric
motor. If arm rotated more than half, it will auto-rotate to next
idle position. If arm rotated less than half,it will auto-rotate
back to the current idle position. Adjustable absorber controls
rotation force to minimize loud sound and avoid over rotation.
3) EASY MAINTENANCE
Common parts are modular and can be easily changed by simply
removing screws. Top cover can be opened for full access into internal mechanism
during servicing. Regular wear and tear parts can be purchased to keep stock for
faster replacement.
4) ANTI TAILING
Smart lock mechanism effectively allow only one person to pass
through at a time. Arm will automatically re-lock back if nobody
pass through after a preset delay time.
5) EASY INTEGRATION
Turnstile is triggered to open via dry contact relay output for
bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black acrylic. Top cover and side leg can be opened to install external devices.
6) USER FRIENDLY
LED at top cover indicates approved entry direction after flash
card.During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.
7) EMERGERY
Arm will drop off automatically when power off for free pass
through,This will fast escape in the event of emergency.
Details:
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Machine core | Semiautomatic |
| 3 | Operating Temperature | -45℃-60℃ |
| 4 | Relative Humidity | ≤95%, No Condensation |
| 5 | Passage Width | ≤600mm |
| 6 | Passing Speed | 45persons/min |
| 7 | Mechanism | solenoid Mechanism |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse,
Current>10Ma |
| 9 | Communication Connection | RS485 Communication |
| 10 | Material | Stainless steel 304,thickness is no less than 1.3mm |
| 11 | Communication Distance | 1200M
|
| 12 | Running life | 3 Million(Continuous Opening and Closing Operation) |
| 13 | Protect level | IP54 |
| 14 | Size | 1400*1500*2300mm(Vertical house); custom made as demand |
| 15 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 16 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming
Hall,Residence Area,Enterprise’s Entrance and Exit
Attendance,Gateway Guard,Charge Management,Special Access Control |
FAQ:
1.Will you install the channel lock for the first time?
Answer: on channel brake installation is very simple, just put the
product fixed well, main machine and insert 110V/220V power supply,
can normal use, if you need to connected to the Internet, only need
to use a network line can be received from the main computer, we
will provide all the one-on-one phone technology Guidance services.
2.Can machines be used outside?
Answer:It can be used outside. We all have waterproof function.
3.What is the warranty for the machine?
Answer:(1) we guarantee all goods quality assurance for two years.
(2) within the two years warranty time,if the machine have
problem,we can offer you the accessories(but you pay the freight
cost)
4.When will you make the delivery?
Answer:regular products:(3-5 days),irregular products:communication
when you place the order.
5.How does your factory control the quality?
Answer:We always attach great importance to quality controlling
from the beginning to the ending.
6.What is your MOQ?
Answer:Any quantity is acceptable for your order. And the price is
negotiable for big quantity.
7.payment term?
Answer:30% by T/T in advance.70% by T/T before delivery.
