Fingerprint,Card,Password Access Control And Video Management Systems

Introduction:

Fingerprint and Card and Password access control and video management systems

Biometric Access Controller for doors and time attendance clock machine with fingerprint security through web-based. Ideally, BF630W features standard TCP/IP and RS485 interfaces for the main communication between devices and the server.
It also supports USB/Voice and Wiegand interfaces to provide maximum versatility.
BF630W has optional WiFi and 4G and Power-over-Ethernet for flexible installation.

Fingerprint Recognition Security Access Control and Time & Attendance terminal

Features:

Access Control / Attendance Management two in one.
Web Server Management as well as software package provide.
TCP connection, single door to multi-door management become possible.

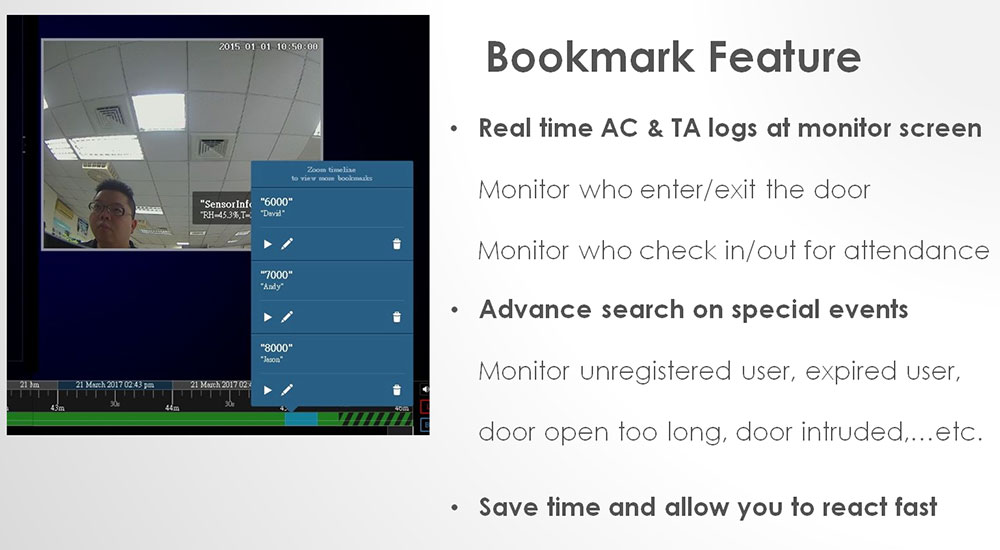

IP Camera integrated can be live monitoring when system users punched.

Specifications:

Verification Mode: FP / Card / Password
Software Application: SoMac
Template Capacity: 9,590
Sensor Type: Optical
Resolution: 500dpi
Sensing Area: 16 x 19mm
Template Size: 256 ~ 384 Bytes
Image Size: 272 x 320 (pixel)
1:1 Verification time: < 600msec
1:1000 Identification time: < 760msec
Card Capacity: 20,000
Communications: TCP/IP, Wiegand/RS485
DIO Support: DI: 3 / DO: 2
Inbuilt Relays (Max power requirement): Lock / Ring (0.5A, 120VAC / 1A, 30VDC)
Option: USB / Voice
System Log: 1,536 entries
Entry Log: 51,968 entries
Time Set / Time Zone / Group: 255 / 120 / 255 Sets
Holiday / Rin Settingg: Yes / Yes
Remote Control / Event Handle: Yes / Yes
Multiple Badge / Fast Registry: 10 Groups / Yes
Function Key: 400 (Auto / Manual)
Anti-Pass Back / Anti Duress: Yes / Yes
Power Consumption: 780mA ± 5%
Power Requirement: 9 ~ 24VDC / 1A
Operation Temperature: 0°C ~ 65°C
Operation Humidity: 5% ~ 80% RH
Dimension / Weight: 160.2 x 140.2 x 46.7mm / 501g

Shenzhen KOMAI Automation Technology Co.,Ltd is a high-tech intelligent enterprise integrating R&D, production, sales and system integration. The company has a senior industry research team, a decade of security industry precipitation. Committed to providing customers with safe, convenient and efficient channel access control equipment; and providing the most advanced import and export solutions for smart campuses, smart sites, communities, office buildings, enterprises and government agencies, including card system, QR code Small programs, ticketing systems, fingerprint recognition, iris recognition, palmprint recognition, face recognition, and human identification.
