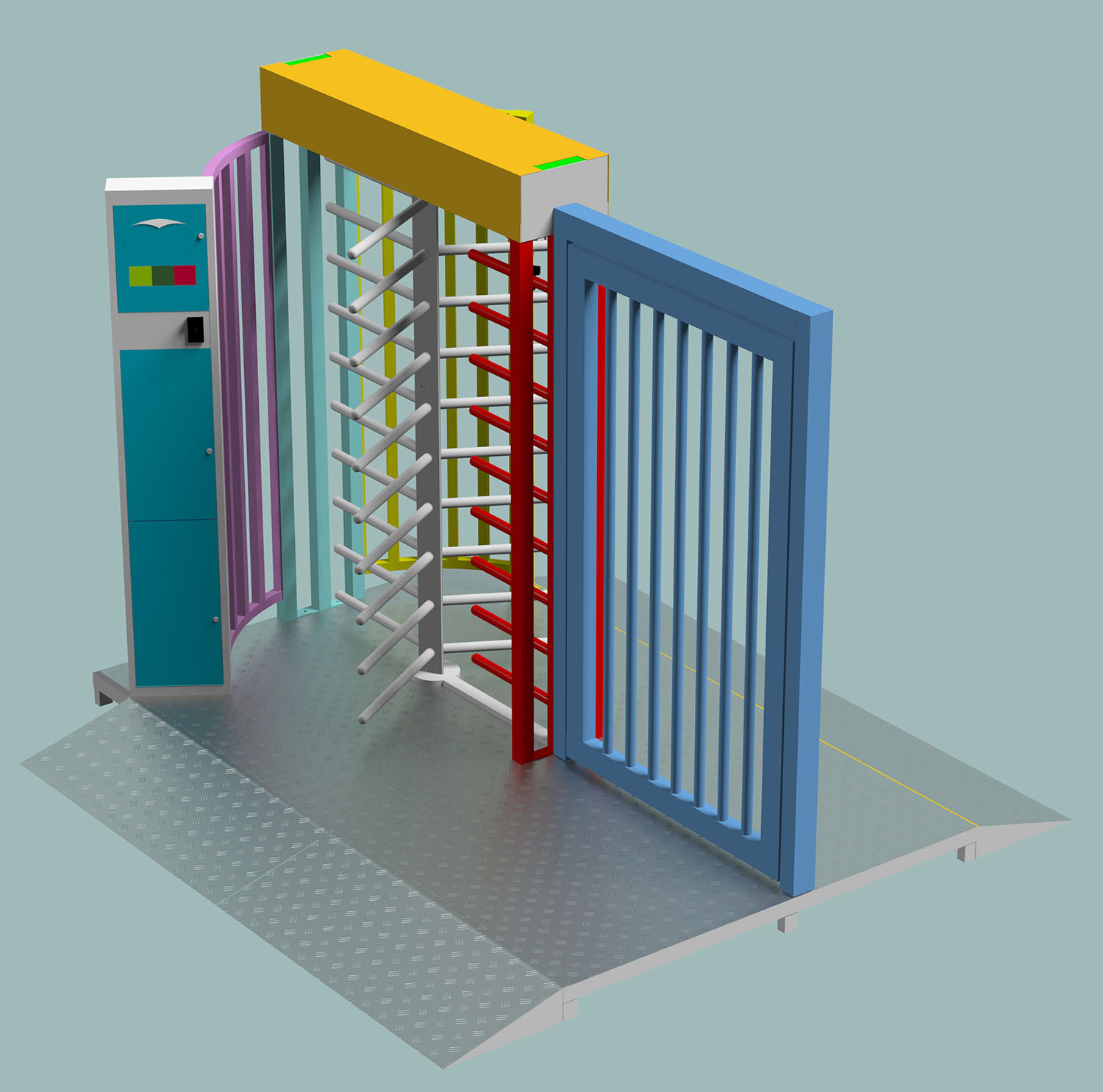

304 Stainless Steel Full Height Access Control Turnstile Gate
Introduction:
This full-height turnstiles designs with tailored stainless steel
make its elegance-looking,durable and anti-oxidation .Considering
unique requests, we built-in standard electrical interface to
best-fit customer easier using magnetic card, barcode, RFID cards
integrated .This system provides civilized, well-organized pass
management .
Considering Fire emergency happen, the system built-in unique
fire-control interface, turnstile will be in free enter/exit
working mode when power off.
Features:
1) Automatically low noise mechanism core equipped, highly
cost-performance
2) Sense positioning, reducing mechanical impact make lifetime
longer
3) Operating efficiency, 1~2 seconds open & close
4) Lowest Noise : No matter in operating or outside control, Noise
control under 30db
5) Self-checking and Alarm warning for maintain
6) Resetting: System cancel authorized pass if passenger delayed
pass
7) Anti-following : prevent illegal passing
8) Anti-clamp :The wings will stopped during in external block, the
wings reset again after default delay
9) The rotary wings will be locked automatically if the system do
not receive IR signal
10) Multi-passage for variety application demands , cover 99% needs
on earth
11) Programmable signal separate control : pass time,pass speed
etc. parameter
12) RS232/RS485 interface meet all kind of communications or
wireless connection
13) Compatible IC/ID card ,flexible couple
14) Long-distance management through COMPUTER
15) Customize Options: LED display, Voice guide, Warning Lamps,
Indicator Lights guide, Audible &Visible Alarm
Control & Interfaces
1. Card readers
2. Metal detection
3. Electronic/LCD counters
4. Fail-open or fail-secure locking
5. Push-button and wireless remotes
6. Manual key override both directions
7. Indicator lights
Technical Parameters:
| Input voltage | 100V~240V |
| Driving voltage | 24V |
| Equipment power | 30W |
| Response time | 0.2S |
| Passing speed | 30 people / min |
| Communication interface | RS485 |
| Communication distance | less than 1200m |
| Open brake signal input | dry contact |
| Switching door time | Less than 1S |
Function:
1.Full height Security Turnstile has pass prompt, booster rotation!
2.Full height Security gate has smooth running and no noise
3.Full height security turnstile gates enjoy free passing setting
4.Buffering and anti collision, anti reverse
passing,Anti-follow,Auto reset function.
5.Uni-directional and Bi-directional pass modes for optional
6.Full height turnstile adopt optical working principle. Absolutely
assure one card for one passing.
7.Full height Security Turnstile with failure self-checking and
alarm functions.so it is convenient operation and maintenance.
8.Can be connected with any control device and receive the output
control signal ,can be controlled by external button or remote
control.
9.Door opens automatically when power off to meet the fire safety
management
10.Memory function:accurate signal memory, continuous to receive
many times the legitimate signal, door will automatic reset after
the last man passed, greatly improve the speed of passing.
11. Normal open and normal close, automatic revolving door can be
also controlled via external button.
FAQ:
1. Will you install the channel lock for the first time?
Answer: on channel brake installation is very simple, just put the
product fixed well, main machine and insert 110V/220V power supply,
can normal use, if you need to connected to the Internet, only need
to use a network line can be received from the main computer, we
will provide all the one-on-one phone technology Guidance services.
2. Can machines be used outside?
Answer:It can be used outside. We all have waterproof function.
3. What is the warranty for the machine?
Answer:(1) we guarantee all goods quality assurance for two years.
(2) within the two years warranty time,if the machine have
problem,we can offer you the accessories
(but you pay the freight cost)
4. When will you make the delivery?
Answer:regular products:(3-5 days),irregular products:communication
when you place the order.
5. How does your factory control the quality?
Answer:We always attach great importance to quality controlling
from the beginning to the ending.
6. What is your MOQ?
Answer:Any quantity is acceptable for your order. And the price is
negotiable for big quantity.
7. Payment term?
Answer:30% by T/T in advance.70% by T/T before delivery.
