    12v Dry Contact Optical Drop Arm Turnstile For Mansion

    Ask Lasest Price
    Brand Name : KOMAI
    Model Number : DA-04
    Certification : CE, ROHS, FCC, ISO 9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, Cash
    Supply Ability : 5000pcs/month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

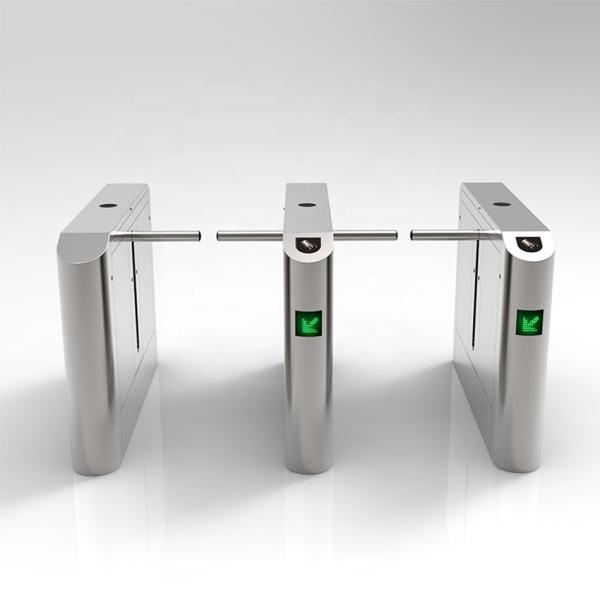

    12v Dry Contact Optical Drop Arm Turnstile For Mansion

    SS304 Stainless Steel Drop Arm Barrier/Optical One Arm Turnstile


    Introduction:

    Optical One Arm Turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.
    This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, company and any place that requires a smart flow control.


    Features:

    1. Easy operation and convenient maintenance with functions of breakdown self check and alarm.
    2. flexible code dialing settings, having about dozens types performance for your selection.
    3. Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the turnstile will automatic stop or rebound, sending out alarm signal at the same time.
    4. Various alarm patterns, including illegal intrusion, reverse passing , anti-trailing and overtime passing alarm etc.
    5. Impact resistant, without receiving the open signal, turnstile arm locks automatically.
    6. Anti-reverse passing, when somebody attempt to passing reversely, the wing quickly shuts at the same time alarms.
    7. High brightness access indicator light and its humanized prompt function, make the passageway more characteristic.
    8. Adjustable for modes of normal open and normal close ,can easily be achieved through code-dialing or external manual button controlling.
    9. Automatic detection and reset function: System will automatically cancel the access permissions when no objects passing is detected within the prescribed period of time (adjustable).
    10. The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
    11. Can be linked with a variety of control equipments, receiving the signal of relay switch .
    12. Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.
    13. Strong environment adapting ability , Turnstile cam be installed in any harsh environments, with strong ego protecting ability. such as weak current, short circuit, glare, fog rain and snow weather, typhoon or other environmental change.


    Parameters:


    Model No.DA04
    Cabinet Material304 Stainless Steel
    DimensionsCabinet:1200*980*180mm
    Motor TypeDC motor 24V
    Weight60KG
    Arm Length≤600
    Passage Width≤1200
    Dry Contact12V
    Material Thickness1.5mm
    Card-reading WindowTwo
    DirectionBi-directional
    Service Life5million times
    Operating Temperature-25℃ ~ +60℃
    Related Humidity≥90%RH
    Communication InterfaceTCP/IP
    Power SupplyAC 220V/110V ±10% 50/60MHZ (optional)
    Opening Speed30-45persons per minute
    Closing Speed25-35 persons per minute

    Shipping:

    1. Normally, we offer UPS/DHL/FEDEX/TNT express with door to door service if the G.W. of goods is less than 50Kg. You just need to pay some custom clearance charge for receiving the items at your specific address. The shipping date is about 3-5 days.
    2. If G.W. is over 80Kg, we will check if air shipment is more economical than express. Shipping by air you need to go to the airport to take items. If you are not very familiar with these works, you may need a broker to help you deal with the customs clearance and goods transportation. The air shipping is about 2-7 days.
    3. If you make a large order, we suggest that you ship by sea. We have our own forwarder for the shipment service.


    FAQ:

    1.Will you install the channel lock for the first time?

    Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert 110V/220V power supply, can normal use, if you need to connected to the Internet, only need to use a network line can be received from the main computer, we will provide all the one-on-one phone technology Guidance services.

    2.Can machines be used outside?

    Answer:It can be used outside. We all have waterproof function.

    3.What is the warranty for the machine?

    Answer:(1) we guarantee all goods quality assurance for two years.

    (2) within the two years warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)

    4.When will you make the delivery?

    Answer:regular products:(3-5 days),irregular products:communication when you place the order.

    5.How does your factory control the quality?

    Answer:We always attach great importance to quality controlling from the beginning to the ending.

    6.What is your MOQ?

    Answer:Any quantity is acceptable for your order. And the price is negotiable for big quantity.

    7.payment term?

    Answer:30% by T/T in advance.70% by T/T before delivery.
