Model | KM-TRI01B |
Size | 1200*280*990mm |
Material | SUS304 Or 316 |
Pass Width | 500-580mm |
Bi-directional | Optional |
Pass rate | 30-35 persons/minute |
Operating time | 0.2 seconds |
Power input | AC100-240V,50/60HZ |
Working voltage | 24V |
Working humidity | 30%~95% |
Working temperature | -40℃~+70℃ |
Working environment | Indoor / outdoor |
Communication interface | RS485, 12v Dry contact, Relay |
Mechanism | Mould machine core+mould bracket+Domestic solenoid |
Product function:
1.Auto replacement function, reposition after person pass by
2.Anti tail function auto-lock once turn 120° .
3.Arms auto drop when power off , insure unblocked when accident
4.Standard electronic interface, remote control through internet
which is also could connect variety card readers and receive relay
signal to work
5.Diverse control mode optional, changeable due to varying,
convenient for your manage
6.Auto alert error function, comfort for user maintain and operate
7.Manual button or remote control ,Bio-directional passage
8.Open signal with memory or with out set function
9.Red and green light to show pass or stop, leisure to exit and
entrance
More details:
Place of Origin: Guangdong, China
Brand Name: KOMAI
Model Number: KM-TRI01B

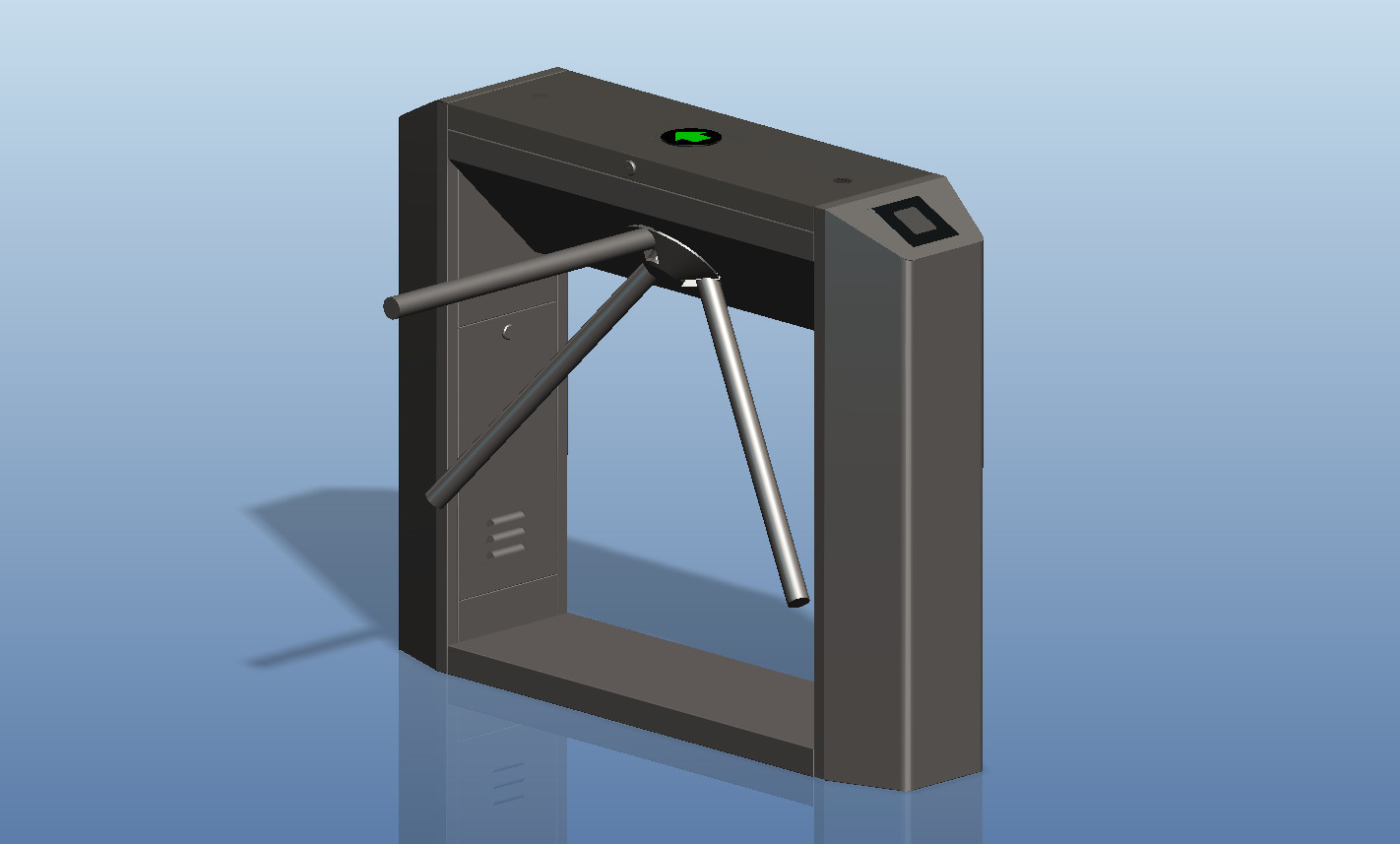

Product name: Barcode Access Control Pedestrian Security Gate
Framework Material: 304 Stainless Steel
Dimension: 1200 * 280 * 990mm
Passage Width: 550mm (Arm length: 500mm)
Passing Direction: Single directional / Bi-directional
Flow Rate: 35-40 people per minute
Power supply: AC220V/110V, 50/60Hz
Operation Voltage: 24V DC
Power Consumption: 20W
Net Weight: 50kg
Packaging Details
Commodity: Smart Door Access Control System ESD Biometric Tripod
Turnstile Barrier
Package Type: Export Wooden Box
Product Dimension: L1200 * W280 * H990mm
Packing Dimension: L1320 * W410 * H1170mm
Unit Weight: 50kg
Gross Weight: 75kg
CBM: 0.63CBM/pcs
Port: Shenzhen Yantian, Shekou
Lead Time : 3-7days
FAQ:
1. Can we use our own access control system?
Yes, it is workable, it can be easily integrated with other access
control system
2. what is your warranty time for your products:
It is one year from its delivery, but for our high speed gate
brushless turnstile, it is 3-year.
