RGB IR Face Recognition Temperature Camera

Ask Lasest Price
Brand Name :	KOMAI
Model Number :	KM-8110
Certification :	CE,ROHS,FCC
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	5000pcs/month
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

RGB IR Face Recognition Temperature Camera

8-Inch Ultra-Thin Face Recognition Body Temperature Detection Dispenser

Introduction:

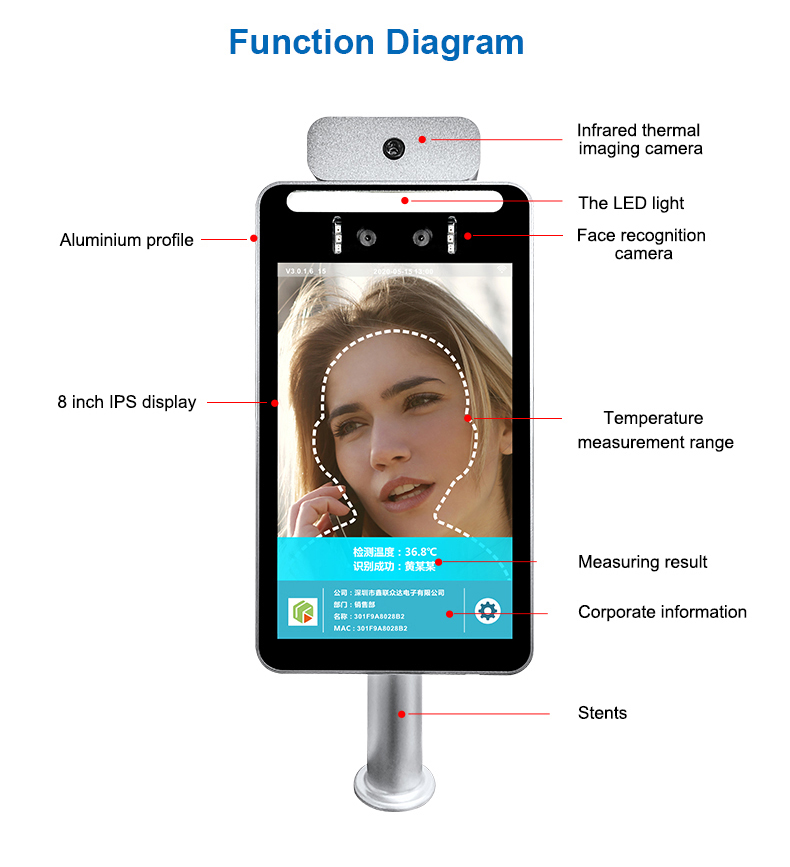

Vertical human body Temperature Measuring Face Recognition access control terminal system, Adopting the high-performance hardware
platform of RSM micro rk3288 / rk3399 / Qualcomm msm8953, equipped with industrial grade binocular camera and human face
recognition technology, as well as infrared thermal imaging module. It supports mask recognition, ID card reader, fingerprint
instrument and other peripheral extensions. It can be applied to gate channel and access control attendance to achieve safe and
efficient access control of personnel.

Specification:

Product Name	8-inch ultra-thin Face Recognition Body Temperature Detection Terminal
Model Number	KM-8110
OS	Android 7.0
Language	Supports Chinese Simplified, Chinese Traditional, English, Italian, Polish, German, Russian, Thai, Spanish, French, Arabic, Korean ext. Total 12 languages.
Camera Specificaton
Resolution	2 Million Pixels
Type	RGB+IR
Aperture	4.0mm
Focus	0 to 2 meters
White balance	Auto
Processor Details
Screen size	8-inch, full-view IPS LCD screen
processor CPU	cores,RK3288
Ram	2GB DDR3
ISP Image Processing	ISP Built-in dual-channel ISP
Local Storage TF card	8GB
Accessories
Fill light	Infrared, LED lights
Card reader module(Reserved)	Card reader,ID card reader and thermal imaging temperature detection module
Interface
Aduio	1 Audio line out
USB port	USB2.0 and 2micros
Serial port 232	2 RS232 ports, 1 WG input, and with WG output
Wiegand port	2.5mmX2PIN
Reset port	Lateral pore position, external buttons
OTG port	In Channel 1
Functions
Offline locally use	20 thousand local face database
Face Detection	20 thousand local face database
1: N face recognition	Support one in 10,000 error recognition with 99% pass rate
1:1	Support optional card swiping module, ID card module which can realize 1: 1 face identification
Stranger detection	Support
Distance recognition adjustment	Support
Remote upgrade	Support
Device port	Including equipment management, access control, personnel or photo management, record query, etc.
General parameters
Protection level	For semi-outdoor or pure outdoor use
Power	DC12V
Operating temperature	10℃-45℃
Working humidity	10%-90%
Static electricity	4K/8K
Battery radiation	Not exceeded
Power consumption	5W MAX
Equipment weight	About3.5 lbs
Equipment size	373.713585mm
Display interface
Boot interface	Neutral (customizable)
Verification interface	1. Including display of prompt ‘Please punch in’ , network signal (whether it is bound / connected), time, date, weekday; 2. Pop-up prompts for abnormal network connection, notification display, ID card information, and prompts for successful or failed verification , which can be customized 3. Including the version number, the number of people, and the number of pictures in database.
Menu interface	Menu style and human-computer interaction, how to enter other modules, management, etc.
User Management
User added	Add people to local apps
User delete	Delete people on local apps
Equipment management
Unlocking rules	Door opening time after verification
Wiegand / RS23	Wiegand format 26/34, RS232
Network settings	Wired, Wifi, 4G module
Time settings	Time, date, time zone, setting (manual setting or server synchronization)
Voice settings	0-10 (0 is silent, the default is 5)
Brightness settings	1-10 (default is 5)
