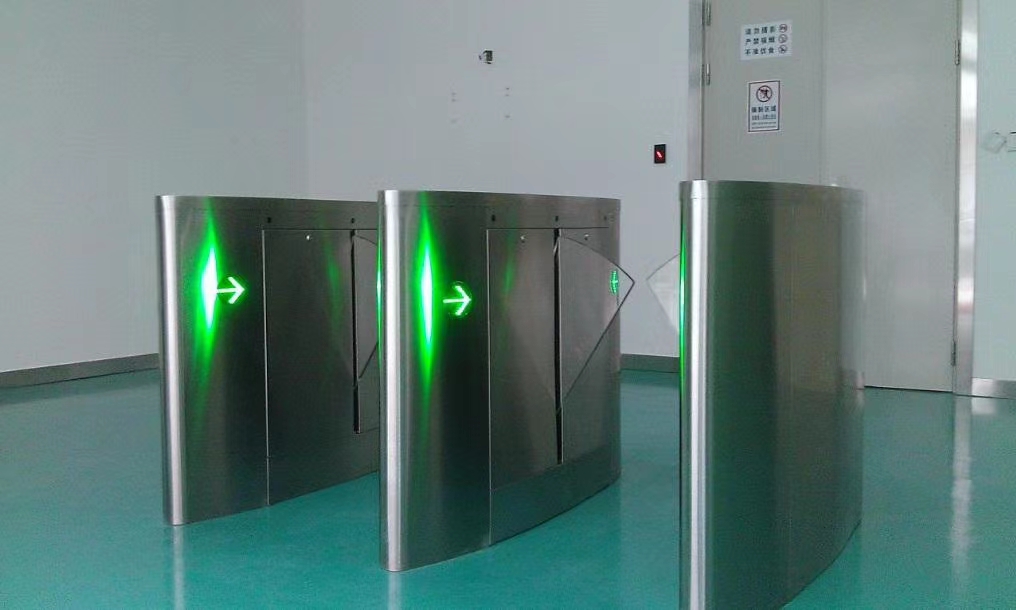

Facial Recognition Control 304 Stainless Steel Flap Barrier
Turnstile
Technical Parameters:
| Housing material: | GB 304 stainless steel |
| Internal structure: | steel frame structure |
| Drive Motor: | DC motor |
| Aisle width: | up to 550-650mm |
| Baffle material: | red or blue imported soft rubber |
| Traffic speed: | 35 people / min |
| Gate opening/closing time: | can be set up |
| Power voltage: | DC 24V±10%, 50HZ |
| Control signal: | relay signal input |
| Light prompt: | green light for passage allowed, and red light for passage
prohibited |
| Input interface: | +12V level signal or DC 12V pulse signal with a pulse width >
100ms |
| Operating noise: | below 65 decibels |
| IP grade: | Waterproof and dustproof rating up to IP32 and above |
| Ambient temperature: | -40℃ ~80℃ |
| Relative humidity: | ≤ 95%, non-condension |
Function:
1. Unique incomplete wheel transmission.
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on, flap barrier will
auto get to be held.
4. Flap barrier will auto alarm when some unauthorized person gets
in.
5. Various working means can be set in the control panel menu,
namely: bi-direction card reading passing, or one direction card
reading passing and another passing limits, or one direction card
reading passing and another free passing, etc.
6. If power off, arm will open automatically while power on late.
7. It is with RS485 connection for far control arm up and down to
satisfy the special needs or fire control requirements.
8. It is with standard electrical interface to connect various
kinds of readers and writers for easy integration and also computer
far control and management can be realized by computer.
9. Passing direction will be shown by LED and passengers will know
which direction is allowed to pass.
10. Re-position function. After card reading, if passenger not
through within the specific time, system will auto cancel passing
right for this time and the limit passing time length can be set.
11. Optional:
1) Counter and counter display
2) Access controller or card reader
3) Key by-pass
Application:
The flap barrier turnstiles can be used in places such as
restaurants, hotels, office buildings, museums, gyms, clubs,
metros, bus stations, high class communities, intelligent
buildings, hotels, subway stations and other high level venues,
ect.
FAQ:
1. What is the MOQ?
We can accept the MOQ is only ONE set.
2. How about the warranty and after-sales service?
We provide 1years free warranty and lifelong paid services.
3. What about the delivery time?
Normally, about one week if we have stock,For some products that
are not in stock or need to be customized, it may take 15-30 days
after received your deposit.
4. Can you accept OEM/ODM?
Yes ,We can accept OEM/ODM,We can provide customized services
according to customers' projects.
5. Are you trading company or manufacturer ?
We have our own factories and our own foreign trade department.
6. Do you have any certificates?
We have passed the product quality test report MAC,ROC, CE,and a
number of utility model patents.
