316SS Swing Barrier Turnstile Gate Wing Direct Drive Optical Flap
Barrier Gate
Introduction Of Flap Barrier Gate:
1) Architectural esthetic design, high quality brushing 304SS,
stainless steel frame
2) Modular assembly provides for moving turnstiles in through
confined routes for final installation.
3) Integration with any identification or access control system.
4) Heavy-duty high precision mechanism Nickel Plate for high
corrosion resistance
5) Flexible extendibility. Operated by access control system and
manual control both are available.
6) ODM/OEM Services acceptable.
Specification Of Flap Barrier Turnstile:

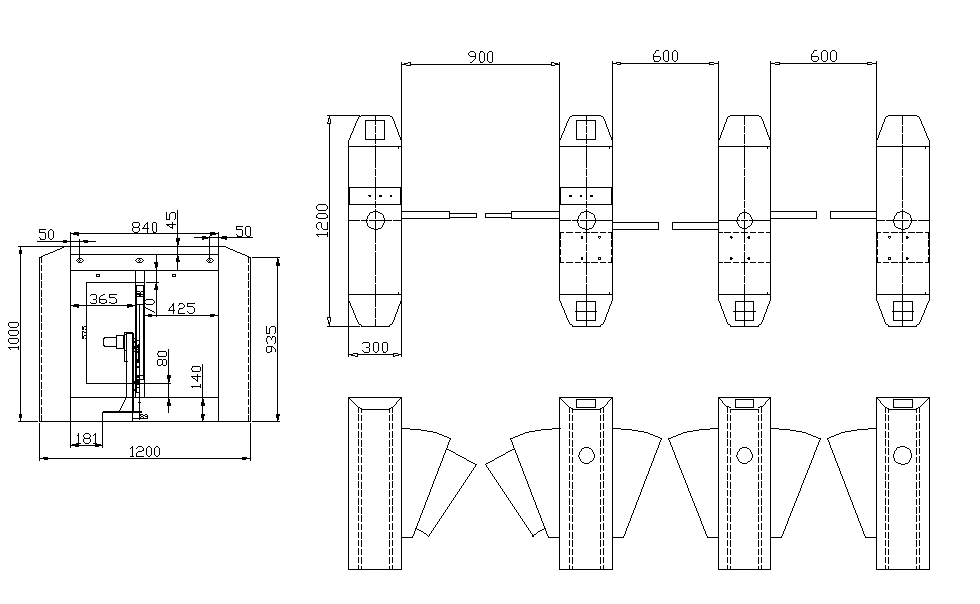

| Size | 1200x300x980mm |
| Material | 1.5mm SUS304 Hairline 400 |
| Arm material | PC |
| Pass Width | 550-850mm |
| Passage direction | Single directional/Bi-directional |
| Pass rate | 30-35 persons/minute |
| Operating time | 0.2 seconds |
| Power input | AC100-240V,50/60HZ |
| Working voltage | 24V |
| Working humidity | 30%~95% |
| Working temperature | -40℃~+70℃ |
| Working environment | Indoor |
| Communication interface | RS485, Dry contact |
| Mechanism | Brushless Motor |
| Infrared sensor | 5 pairs |
| MCBF | 5,000,000 Cycles |
| Access control system | ID/IC card ,fingerprint,face recognition,Barcode/QR code,phone
app,ESD system,visitor system,etc |
Functions Of Flap Barrier Gate:
1) Rapid identification technique, available to identify accurately
and efficiently the magnetic card, bar code card, ID card and IC
card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring
system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent forcedly passing without the
card
7) Automatic counting and displaying number of passenger,
facilitating observation and with a displaying total amount as high
as 90,000
8) Light and sound alarm indication function, preventing illegal
entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you:
A) To adjust the operation speed of the barrier according to the
flow of passenger and improve the passing rate.
B) To set up operation mode for passage entry and exit.
C) To read card with multiple times, the special function meeting
the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To select a reasonable normally open or close mode, to divert
the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
10) The infrared sensing technique realizes real time monitor of
passage, safe protection and tail-proof.
12) The processing mode in emergency or in special conditions.
13) Having standard input/output port, facilitating the integration
of the system and the other equipment, to realize far end control
management.
14) Super combination capability, with the combined application of
products of different passage types and series, not affecting the
system performance.
15) Strong system expending capability, available to add new
product at any time
16) Far end control management: function to far end control of
barrier mode, meeting the special requirements of the users and the
fire protection
17) Resetting automatically. After reading card, if the passer
didn’t pass at set time, the system will cancel pass permission
automatically, the administrator can set the passing time by
himself.
Application Of Flap Barrier Gate
1. Public Places: lobby entry, Subway, Airports, Stations,Library,
Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country
clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel, Factory, Bank, Prison, Office
Building,School, Enterprise’s Entrance and Exit Attendance.
FAQ:
1. Are You Factory/Manufacturer Or Trading Company?
We are factory/manufacturer of barrier gate with over 14 years'
experience.You can get competitive price barrier gate here of high
quality.
2. Do You Offer OEM/ODM Service?
Yes, we have rich experience in offering OEM/ODM service. Design
service offered.
3. Can machines be used at outside?
With waterproof function, could be used at outsise.
4. What is your MOQ?
Any quantity is acceptable.
