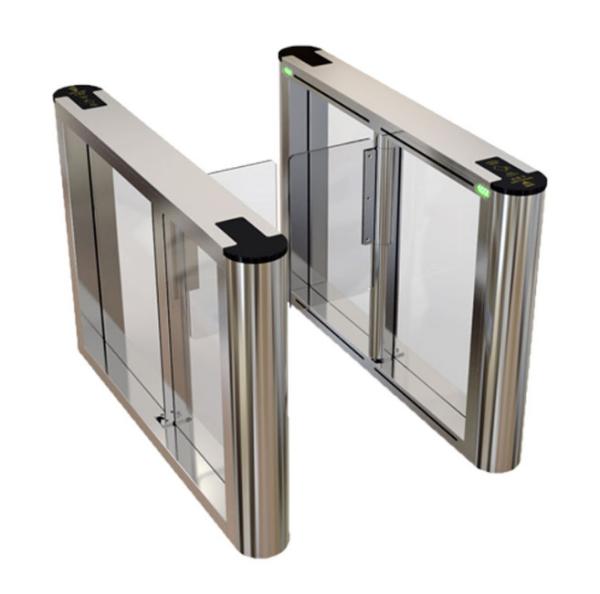

Pedestrian Turnstile Barrier 304 Stainless Steel Security Gate Card
Reader
Introduction:
This security gate is an intelligent channel management equipment
developed, developed and produced by the company. The device
combines ingenious mechanical transmission, circuit board control,
LED lighting effects and various reading and writing technologies.
By configuring different reading and writing devices, intelligent
control and management of channel traffic can be completed.
The whole product frame adopts stainless steel laser cutting, CNC
bending forming, beautiful appearance, simple control by servo
control system, large speed range, high speed of servo motor,
stable torque characteristics, and servo motor itself with encoder
To form a high-precision, high-performance control system. The
system adopts a standard quick-swap electronic interface,
integrates a two-dimensional code scanner and a card reader, etc.,
and can conveniently integrate bar code, two-dimensional code, ID
card, IC card and other reading and writing devices on the device,
thereby It provides an orderly and civilized way for the entry and
exit personnel, and can prevent illegal personnel from entering and
leaving. At the same time, in order to meet the requirements of the
fire exit passage, a special fire button interface is provided in
the system, so that the gate can be automatically opened and the
personnel evacuated in an emergency.
OPERATING MODES:
l Single passage in the set direction
l Bi-directional single passage
l Free passage in the direction
l Always free or locked
MATERIALS:
l Housing:Made in stainless AISI 304
l Barrier swings-Acrylic,PC,stainless steel frame
FEATURES:
1.The electric control adopts DC motor to drive stable and
reliable, and has low failure rate. Ultra high light traffic
indicator function: directional instructions are designed with
ultra bright LED lights, indicating more prominently;
2.In the case of the person who has not swiped the card into the
passageway, the equipment alarm will prompt the traveler to swipe
the card.
3.The function of the reverse alarm system: when a pedestrian
swipes the card, the device alarms the alarm.
4.Check the following function: when the first person swipes the
card, the second person doesn't swipe the card and the device will
alarm.
5.The bicycle delay function: prevent the gate from hitting the
bicycle;
6.Various control functions: by set the setting, the brake machine
can be set at special time to the regular open mode, which
satisfies a large number of people.
7.The mode of choice: to meet the different requirements, it can be
set up as a two-way credit card or a one-way credit card and free
pass.
8.Various control functions: external button, remote control, bar
code, IC or ID, etc.
9.Remote control function: the RS485 can be connected to RS485 by
computer and the RS485 remote control brake machine.
10.Automatic reset function: after the credit card has not passed
in the specified time, the lock will return the lock to cancel the
pass, time 1-60 seconds.
| Model | Swing Barrier Turnstiles |
| Brand | KOMAI / OEM |
| Size/Stick length | 1200*280*980MM |
| Arm length | 280 mm (norm) |
| Material | SUS 304 thickness(1.5mm) |
| Input Voltage | AC110-220±10%,50HZ60HZ |
| Moter's power | 24V |
| Failure-free operation | 5 million/time |
| Weight | 65kg |
| Traffic speed | 35 persons/min |
| Flap Opening/Closing Time | 1-2s |
| Operating humidity | ≤90% |
| Operating temperature | -15℃-60℃ |
| FWD DS | |
| Working environment | indoor and outdoor |
Functions:
1. Self-test and alarm function,user-friendly maintenance and use
;With automatic reset function,gate opening after a specified
period of time. If user does not pass,the system will automatically
cancel the user's current access permission; Auto-reset delay, the
standard automatic reset is after 10 seconds.
2. Through the main control on the half-built small-press
plate,Programmable devices show running status.
3. When valid card is read and passenger passed,arm can be delayed
to close from 1-10s which can be set on the control panel.
4. One-directional,bi-directional function.
5. Auto-reposition function:After card is read,if passenger does
not pass within regulated time period,swing gate will cancel this
passing permission,The regulated time period for passing can be set
by management.
6. If passenger passes without card being read or valid card
read,Swing barrier will alarm until passenger gets back from the
swing barrier and then uses a valid card to be read for passing.
7. Erosion control features,in the absence of gate opening signal
receipt,the arm will automatically be locked.
8. Anti-rush function:if there is no open signal arm will hold
tightly.
9. Adjustable arm swing synchronized (for the double pendulum
case).
10. Adjustable normally open or closed, in order to meet the
requirements of the different venues.
11. Connecting with a variety of reading devices which can be
linked to the receiving signal relay switch.
12. Swing gate is with RS485 interface for long-distance control
concern and the integration of various readers and writers.
Managing computer directly through the remote control and
management .
13. Auto power-off flap opening,power-on self-closing,Meets fire
safety requirements.
14. Double anti-clipping function: photocell anti-clipping and
mechanical anti-clipping.When passenger is going through the swing
barrier,photocell will detect this situation and will not close.
After passenger has passed,arm will close automatically. During its
reposition,if arm meets any obstacle,arm will get back
automatically or stop working for a while with very slight force.
Also it will alarm.
15. Direction display to guide passenger which direction to go.
16. Card-reading with memory or without memory function.
17. Swing barrier can control the population inside in the control
of software.
18. Stable running with little noise.
