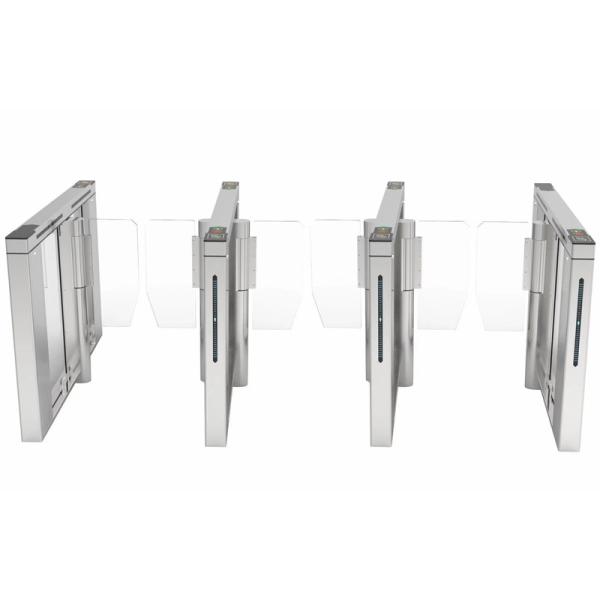

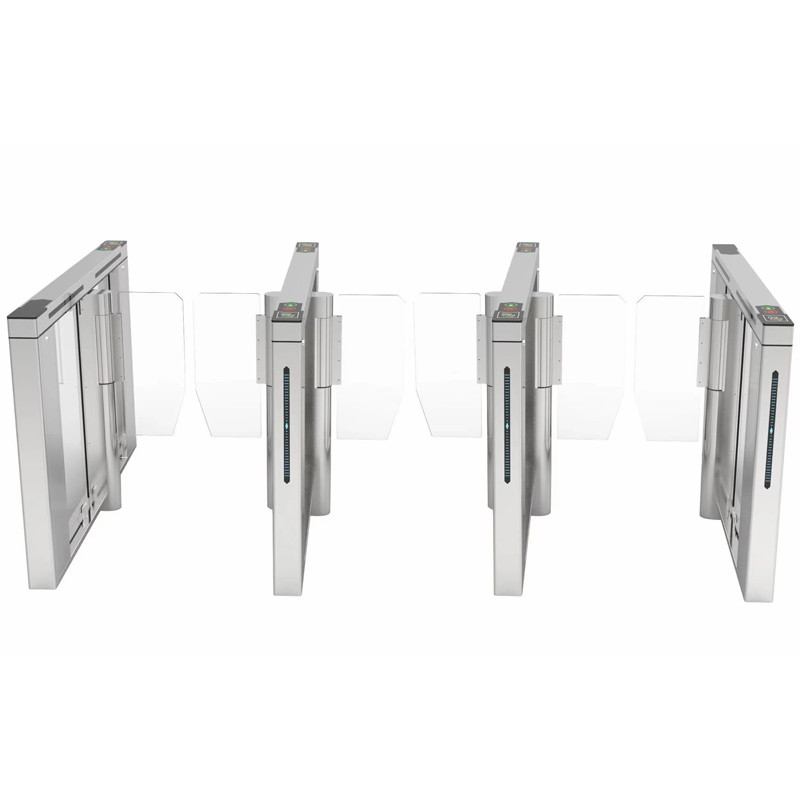

Automatic SUS316 Servo Motor Airport Swing Barrier Gate
Introduction:
Airport Swing Barrier Gate offer a reliable and efficient method to
ensure only authorized users are allowed access to each area of a
building. It is an attractive swing turnstile that is easily
capable of handling high volume and abusive conditions. The compact
unit makes it simple to construct a multiple lane set-up while the
variety in colors allows you to match this turnstile perfectly to
your lobby or branding.
Features:
Optional function of Airport Swing Barrier Gate:
1.Sound and Light alarm (including illegal infiltration and
anti-jam alarm)
2.Infrared anti-jam
3.Logical judge ,auto reset
4.Passenger counting(add for forward direction, substract for
reverse direction)
5.Arm length is adjustable
Our Services & Strength
Material: 304/316 stainless steel or as per your request
Surface treatment: Raw finish or as per your request
1.Sample is always welcome.
2.Small order also acceptable
3.Design for clients' ideas.
Advanced Features:
1. Functions of breakdown self-checking and alarm warning, very
convenient for customers’ maintenance and use.
2. Program operation mode of equipments through the little button
inside the main board.
3. Double Anti-Pinch function from both machine structure and
induction. Stops automatically if there is something in the way
during the return /rest of the doors. If there is default time
delay, it will have its second return (till it comes back to where
it should be), and the force is very weak.
4. Anti-rushing function: without having received the signal of
opening up, the doors lock automatically.
5. Doors can be adjusted into synchronization (only for
double-locks).
6. Automatic returning/resetting function: when the barriers open
up, if people do not pass by within the time allowed, system will
cancel the right of pass for this time.
7. Adjust it to normal open or normal closed to meet the different
requirements of different fields.
8. Can be linked to many kinds of card-reading equipments and work
when it has received the signal of electricity relay switch.
9. One-way and two-way in and out control of passer.
10. Carry out distant control and management by directly operating
computer.
11. Automatic returning /resetting when there is time delay.
Normally speaking, it returns/resets five seconds after its
opening.
12. When the electricity is cut off, the access opens
automatically, and closes automatically when the electricity is
linked. Meet the requirements of fire-fighting.
13. Sound and lights alarming: including break-in and opposite
direction intrusion, and so on.
14. Anti-Pinch function (four pairs of infrared)
15. Accurate logical judgment, Irda returning function (four or six
pairs).
| |
| |
| 2.0mm imported SUS Polish 400# Snow line+Top Cover:12 man made
marble+Filling Panel:10mm Acrylic with Led light bar |
| |
| |
| Single directional/Bi-directional |
| |
| |
| |
| |
| |
| |
| |
| RS485, TCP/IP,Dry contact |
| |
| |
| |
| Airports, Hotels, Governemnt Halls, etc |
FAQ:
1.What's the MOQ?
The MOQ of the tripod turnstile is 1pc/pair
2.Whether the size and shape of turnstile can be changed?
Yes, we can redesign the size and shape of the turnstile
to meet your requirement.
3.Is the parts of turnstile available?
If you order our turnstile, the parts can be offered.
4.About the OEM and ODM
Our turnstile can be label your logo to meet your requirement.
5.About the warranty and after-sales services
We provide one year warranty and all life after-sale service,
if require, we can dispatch our engineer to the spot to
help you
6.About the package
For turnstile, carton package first, then wooden case package
to make sure if won't be damaged in the process of transportation.
7.About the installation
We provide the manual to help you to install our turnstile,
as for the software, we provide team viewer to install the
software. Any help will be provided to meet your needs.
8.About the delivery time
5-7 days after payment received
9.About the term of delivery
Support EXW, FOB,etc.
