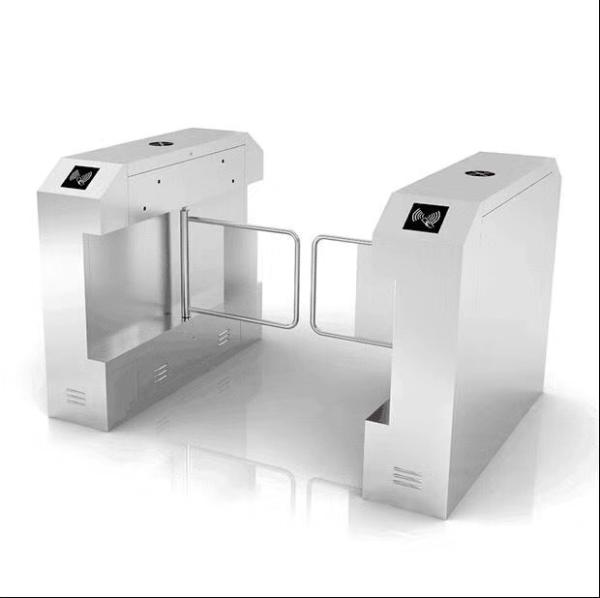

High Security Automatic Fast Speed Swing Barrier Turnstile Gate
Optional Functions
1. Stainless steel Material :304 stainless
2. Stainless steel surface treatment : Satin treatment , brush /
hairline finish , mirror finish
3. Operation Motor : Brushed motor / Brushless DC motor / Servo
motor
4. Sound, light alarm function: with trespassing, trailing alarm
5. The turnstile controller with counting function, LED digital
display function
Specification:
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Operating Temperature | -45℃-60℃ |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Passage Width | 600mm-1000mm (optional) |
| 5 | Passing Speed | Normally open-50persons/min; Normally closed-40persons/min |
| 6 | Manufacturing Technique | CNC laser cutting |
| 7 | Motor | DC Brushless motor or servo motor 140W/24V |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 9 | Communication Connection | RS485 Communication |
| 10 | Barrier Material | Acrylic glass, SS304 and so on |
| 11 | Material | Stainless steel 304,thickness is no less than 1.5mm |
| 12 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
| 13 | Protect Level | IP65 |
| 14 | Size | 1200/1400*280/180*980mm (customized) |
| 15 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like |
| 16 | Operation Place | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
FEATURES AND FUNCTIONS:
1) Use of RFID IC cards,ID cards,Barcode or magnetic cards as
automatic identification system and achieve access attendance,fees
or function.
2) A direction indicator showed that the pedestrian access to the
current status and guide pedestrian correctly and in smooth
passage.
3) Semi-auto mode:After reading card the passenger pushes the arm
by hand until he goes through the barriers and the arm arrives in
home position.
4) Full-auto mode:The passenger pushes the arm at a little strength
after reading card,and the arm will automatically rotate forward by
motor power until the arm arrives in home position.
5) Pure mechanical mode:The passenger pushes the arm by hand until
he goes through the barriers.
6) Single or bi-directional function in mechanical and electrical
versions.
7) Automatic reset of barrier arms after each passage.
8) Cable or wireless remote control panel key override control for
emergency situations.Automatically arm drop down when power off or
emergency.
9) Adjustable time out delay.
Features and Benefits
- Safety first: In the fire or power-off,the door can be free to promote and
ensure unimpeded
- Various Interfaces: I/O, RS232/485,CAN interfaces, which it is convenient to control
signal input, and provides convenient centralized fire control
interface.
- Two working modes: NC and NO, which is easy to deal with peak and normal use.
- Multiple control modes: There are unidirectional, bidirectional, free passage and
authorization passage to meet fully the users ‘needs, which consist
of nine control modes;
- Precise positioning: precise positioning by photoelectric sensors, the work cycle of
door is regular and precise positioning to ensure correct position
after long work;
- Sensor Analysis:The sensor got signal which real-time processing and analyzing a
person or object for a variety of action, according to the results
of analysis are to accurately control the action of machine core,
indicator and alarm etc.
FAQ:
About our services
1. About the OEM and ODM
All turnstile gate support OEM and ODM
2. About the warranty and after-sales services
We provide 2 years warranty and all life technicial support, if
requirement, our technician can come to help you
3. About the installation
We can provide the manual to help you to install our turnstile, as
for the software, we can provide Team viewer to install the
software.
Any help will be provided to meet your needs.
4. About the term of delivery
We support EXW, FOB, CIF, CIP, DDU etc. We support you with the
most suitable way.
5. About term of payment
TT,30% as deposit ,70% balance before shipment ,your turnstile
picture ,video will sent to you before balance
6. Packaging and shipment
Turnstile gate packaging by waterproof foam ,neutral carton and
export wooden case
Shipment take 2-20 days after received deposit ,it's up to your
requiremets and quantity
