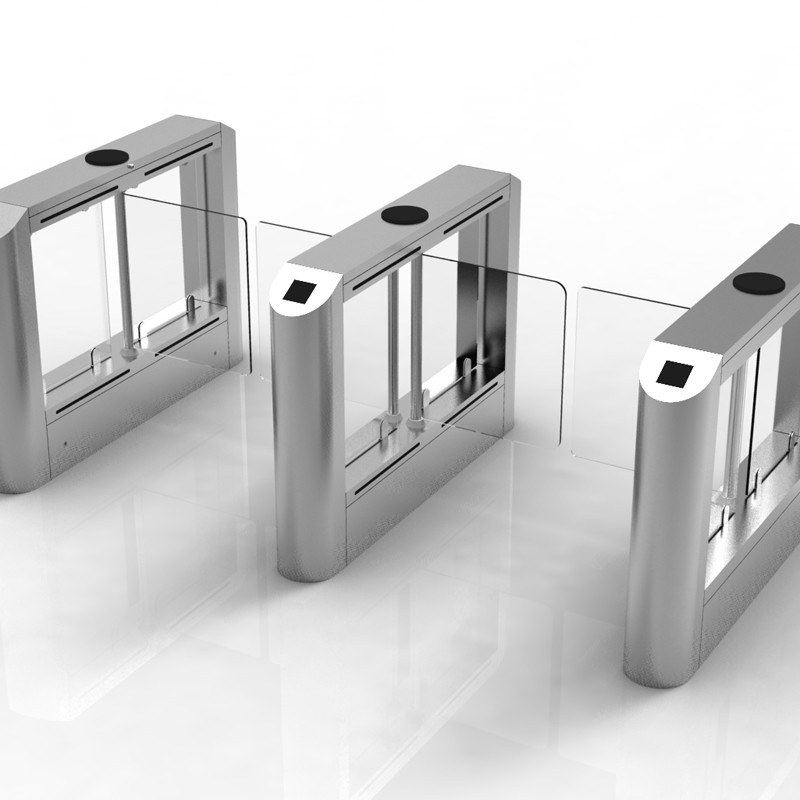

Intelligent Bidirectional Mechanism Swing Barrier Turnstile
Automatic Gate
Available areas:
Public transportation (Train Stations, Metro Stations, etc…)
Government Offices
Public Offices
Business Building Centers
Schools
Hospitals
Stadiums
Sports Centers
Industrial Buildings
Specification:
| Subject | Data |
| Dimensions: | 1500x180x1020mm |
| Materials: | 304 stainles steel (more than 1.5mm) |
| Opening time: | 0.2 seconds |
| Infrared: | 5 logarithms |
| Lane width: | ≤900mm default 600mm |
| Throughput: | 35 person /minute |
| Voltage: | AC220±10%V 50HZ |
| Motor: | DC motor 24V |
| Power: | 35W |
| Temperature: | -25~+70ºC |
| Applicable environment: | Indoor/outdoor (rainproof shed without ponding) outdoor) |
| Relative humidity: | ≤90%,No condensation |
| Communication interface: | RS485 Electrical standards ; ≤1200 meter / TCP-IP |
FEATURES AND FUNCTIONS:
1.Within direction indicator to show the current status of the
passage to pedestrians, guide pedestrians to pass correctly and
quickly
2. Within automatic power-off function when the system is powered
off, the access gate is opened to form a barrier-free access
3. Using several pairs of infrared sensors to prevent pedestrians
from illegally entering the passage, protecting pedestrians from
passing the passage smoothly and preventing trailing functions.
4. Within automatic reset function, after reading the card, if the
pedestrian does not pass within the time specified by the system,
the system automatically cancels the permission of this pass, and
the reset time value can be set online.
5. There is a LED indicator light on the cover of the box. When the
valid card is swiped, there will be a green arrow to indicate the
direction of passing;
FAQ:
About our services
1. About the OEM and ODM
All turnstile gate support OEM and ODM
2. About the warranty and after-sales services
We provide 2 years warranty and all life technicial support, if
requirement, our technician can come to help you
3. About the installation
We can provide the manual to help you to install our turnstile, as
for the software, we can provide Team viewer to install the
software.
Any help will be provided to meet your needs.
4. About the term of delivery
We support EXW, FOB, CIF, CIP, DDU etc. We support you with the
most suitable way.
5. About term of payment
TT,30% as deposit ,70% balance before shipment ,your turnstile
picture ,video will sent to you before balance
6. Packaging and shipment
Turnstile gate packaging by waterproof foam ,neutral carton and
export wooden case
Shipment take 2-20 days after received deposit ,it's up to your
requiremets and quantity
7. What`s the difference between manual type turnstile and
automatic type turnstile?
Manual turnstile no electric control , while automatic type can
compatible with different reader and system
8. What`s the difference between full auto tripod turnstile and
semi-auto Tripod turnstile?
First, Full-auto tripod control by motor ,semi-auto control by
electromagnet
Second, Full-auto open automatically after scan authorized card
,people need push semi-auto arm ,then turnstile open
Third, for full-auto type, when power failure, the middle arm will
drop automatically, and when power on again, the arm will up
automatically.
For semi-auto type, when power failure, the middle arm will drop
automatically, and when power on again, it needs people to lift it
