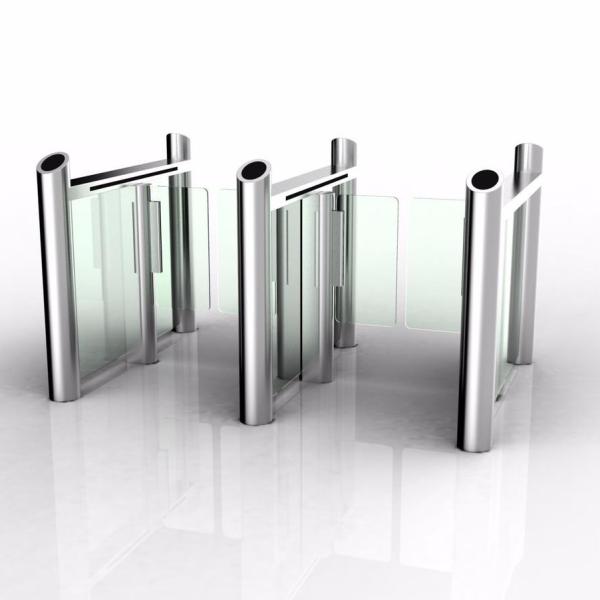

SUS304 Waist Height Swing Gate Automation Systems
Product Details:
The high-end series of turnstiles, the technological level and
technical characteristics of the products have reached the top
level of the domestic counterparts. After many exhibitions and
promotion, the appearance, craftsmanship and performance of the
products have been unanimously praised. It can highlight the
advantages in the project's control points, and is the first choice
for commercial office buildings, exhibition halls, clubs, and rail
transit.
Specification:
| Technology Parameters |
| Size | 1400/1600×120×990mm |
| Unlock time | 0.2s |
| Pass rate | 35p/m |
| Pass width | ≤550mm |
| Input | 100V~240V |
| Driving voltage | 24V |
| Environment | -25~+70℃ |
| Power consumption | 35W |
| Input | Dry contact |
Functions:
1. Main materials
Box: SUS304 original brushed snow sand stainless steel
Movement: 45# steel + electroplated color zinc
Door body: Acrylic (color optional)
Frame: stainless steel or cold rolled plate
2. Movement performance
Transmission mode: brand DC motor
Safety mode: barrier-free passage after power failure
Power-assisted drive: motor drive
Door opening method: swing left and right
Reset method: automatic reset
Door opening direction: two-way
Channel width: ≤600mm
Equipment noise: ≦52db; door opening and closing ≦55db
Passing speed: 35 people/min in normally closed mode; 60 people/min
in normally open mode
Movement life: 10 million times
Structural parameters:
◇ Cabinet material: 304 stainless steel (default) / 316 stainless
steel (optional)
◇ Cabinet size: 1400×160×1000(mm) (customizable)
◇ Steel plate thickness: 1.5mm (default) / 2.0mm (optional)
◇ Surface treatment: wire drawing (default) // paint (optional,
color can be customized)
◇ Swing arm material: plexiglass
◇ Channel width (folio): 600mm (customizable)
Technical parameters:
◇ Power supply voltage: AC 220V
◇ Working voltage: DC 24V
◇ Work rate: 100W
◇ Mechanical movement: non-destructive, silent and anti-collision
movement
◇ Drive motor: brushless motor/servo motor
◇ Input interface: relay switch signal or 12V level signal or 12V
pulse signal with pulse width>100ms, drive current>10mA
◇ Communication interface: RS485 standard
◇ Passing speed: 30-40 people/minute
◇ Working temperature: -30℃~ 80℃
◇ Working environment: indoor/outdoor (a awning is recommended)
◇ Average number of failure-free operations: 5 million times
◇ Opening and closing time of the gate: 0.5 seconds
◇ Time required to enter the pass state after power-on: 3 seconds
◇ Automatic reset time after failure: 5 seconds

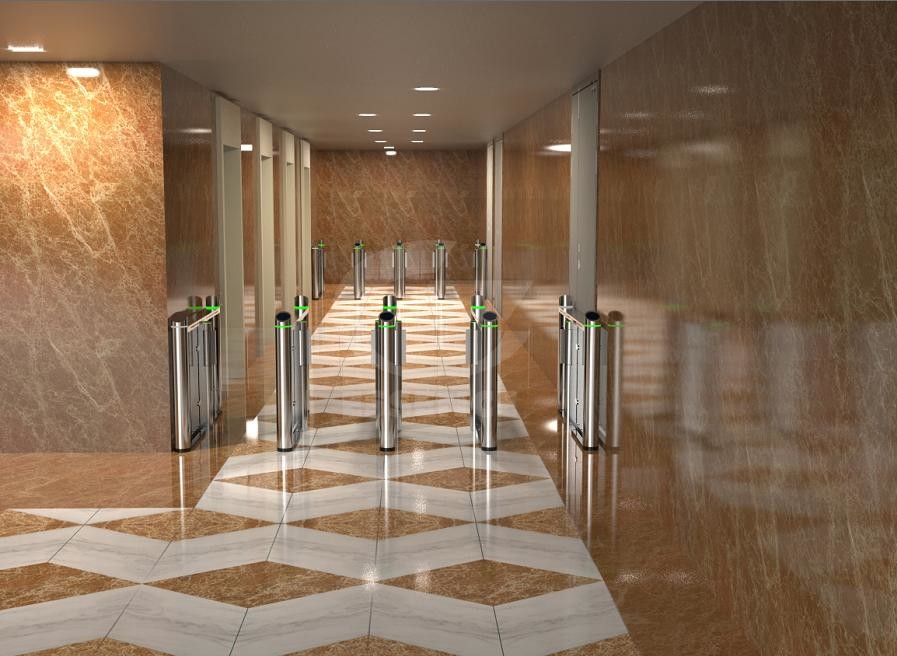

Typical application:
◇ Office locations: smart buildings, commercial buildings,
government agencies, factories, etc.
◇ Scientific and educational units: schools, colleges, research
institutes, libraries, etc.
◇ Commercial service places: supermarkets, shopping malls, hotels,
clubs, banks, etc.
◇ Living place: residential area, community, apartment, dormitory,
etc.
◇ Transportation sites: bus station, railway station, subway,
airport
◇ Scenic spots: scenic spots, playgrounds, theaters, gymnasiums
Typical application:
◇ Office locations: smart buildings, commercial buildings,
government agencies, factories, etc.
◇ Scientific and educational units: schools, colleges, research
institutes, libraries, etc.
◇ Commercial service places: supermarkets, shopping malls, hotels,
clubs, banks, etc.
◇ Living place: residential area, community, apartment, dormitory,
etc.
◇ Transportation sites: bus station, railway station, subway,
airport
◇ Scenic area: scenic area, playground, theater, gymnasium
FAQ:
1. What is the strength of your company in this industry?
We are the top 10 in turnstile field in China, more than 80
employees and over 15 senior R & D technical persons to ensure the
gate could work well in different environment, power supply and
current. Experienced foreign trade business team can help you to
deal with any emergency before, during and after the sales. The
brand KOMAI is highly recognized in Southeast Asia.
2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a
strong distributor in each area, and gradually establish
overseas service agency, as a good opportunity, some long-term
cooperation partners will compete with us to sign the annual
cooperation agreement (including execution price).
3. How about Quality Control?
IOS9001 could help us to realize the factory management control and
our ERP system can help us to control the cost of procurement links
effectively, so we can provide a good price. New test system could
do uninterrupted fatigue testing to ensure its using life.
Pre-shipment inspection and third-party supervision are available.
4. How about some special design?
That’s our advantage of design new gate or barrier according to
your real situation to make different size, software and
features.Video call available during design and communicate in time
during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales
anytime. For installation, we will offer instruction video to help
and if you face any technical question, welcome to contact with us
to have a face time to solve it.
